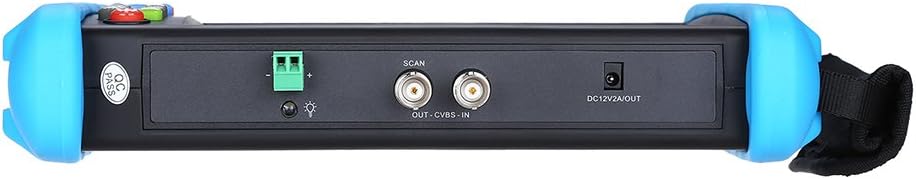

EVERSECU 7 inch IPS Touch Screen H.265 4K IP Camera Tester CCTV CVBS Analog Tester Built in WiFi with POE/WIFI/8G TF Card/HDMI Output/RJ45 TDR/Dual Window Test/Firmware CCTV Test Monitor

Note: Do not support HDMI in, Cable trace and Video level meter After receiving the product,you need to open the back battery cover and take out the insulation sheet first,then you can use the lithium battery normally. Features: IP & CVBS camera test ,PTZ controller Rapid video, just by one key to detect all network cameras and auto display RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc HDMI signal output, support 1080p display image, record and snapshot CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters Customers self update software, you can install apps with android versions, such as Skype, wechat etc 4K video files and MKV/MP4 media files play 8GB SD card including IP camera test, support 2592*1520, Network PTZ controller PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator POE voltage measurement, PING test, IP address scan, port flashing etc Shortcut button, drop-down menu, can select PoE power, IP setting, WLAN switch, HDMI out functions etc in any interface Supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator Audio in /out , support record and save the audio/LED lamp, calculators, music players and other application tools 7.4V/5000mAh Lithium Ion Polymer Battery, after 6-7 hours charging, working time lasts 10 hours

• H.265/H.264, 4K video display via mainstream. 1280*800 resolution.(Note:The product box and manual are generic and include all functions.The actual function of this product is subject to the description.)
• 48V PoE power output power, Auto log in and display image, create testing report, support all brands name IP Cameras test, enter the app, input username and password to test
• CVBS camera test and PTZ control, Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement, CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable, Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
• Built in Wi-Fi, display image from the wireless IP camera, create WIFI hotspot
• HDMI output, 1080p. Quick office(excel ,word ,PPT format ) doc, UTP cable, telephone cable order and connectivity test, can save testing report.
